Analysis of Common Operating Conditions for Gyratory Crusher
- 2025-09-26
- view count：
Gyratory crushers are core equipment for primary crushing in industries such as mining and construction. With their high reduction ratio, strong handling capacity, and stable operation, they are widely used in the primary crushing of bulk materials.
Gyratory crushers are primarily designed for medium- to extra-hard, large-sized solid materials that require high compressive strength, moderate toughness, and no strong corrosiveness. They are primarily suited for crushing metal ores (iron ore, copper ore, gold ore, lead and zinc ore, etc.), limestone, granite, marble, blast furnace slag, and construction waste. Gyratory crushers are not suitable for crushing highly sticky materials (such as clay and wet coal) or materials containing highly corrosive components (such as acidic and alkaline waste residues), as these can corrode metal components such as the equipment's lining and main shaft, shortening their lifespan.
The core operating conditions of a gyratory crusher are "continuous, heavy-load, open-air/semi-open-air operation," requiring it to adapt to the primary crushing processes of various industries. Specific scenarios and requirements are as follows:
Characteristics of primary crushing in metal mines:
1. The material is large (typically 500-1200mm) and has high hardness (for example, iron ore has a compressive strength of 200-280MPa), requiring the equipment to withstand high-frequency impact loads.
2. The operating environment is often open-air, requiring it to withstand wind, rain, and dust (dust removal equipment is required to prevent dust from entering the bearings).
3. Continuous operation is long (typically 24/7, with only periodic maintenance stops), placing high demands on the life of the equipment's wear-resistant parts (such as the crushing liner and main shaft).
Key requirements: The material must be fed evenly (controlled by a vibrating feeder) to avoid uneven wear on the liner due to uneven loading. Overload protection (such as a hydraulic safety device) is required to prevent the equipment from seizing due to excessively hard materials.
Characteristics of construction aggregate production:
1. The material hardness is medium (150-200 MPa), but a uniform particle size is required after crushing (to reduce the burden of subsequent screening);
2. The operating environment is mostly semi-open-air (enclosed workshops in aggregate plants), and dust control is strict (bag dust collectors are required);
3. The production pace fluctuates with construction demand (full capacity required during peak season, intermittent operation possible during off-season), requiring equipment with flexible start-up and shutdown capabilities and no residual material blockage.
Key requirements: The crushing chamber "discharge opening size" (usually 100-200mm) must be adjusted according to the required aggregate particle size. Regular inspection of liner wear is required to prevent excessive particle size due to liner thinning.

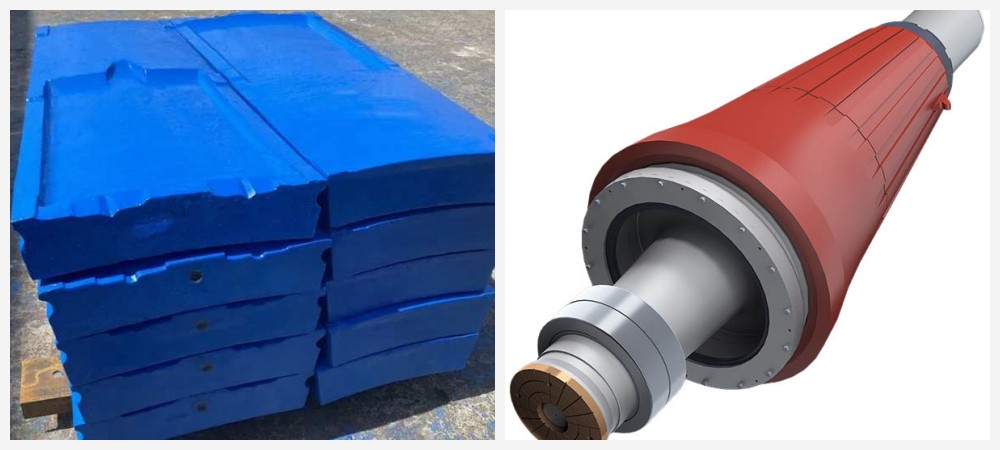

To meet these operating requirements, our company prefers high-manganese steel (ZGMn13) or high-chromium cast iron for the wear-resistant liner of the gyratory crusher, and the main shaft uses 40CrNiMo alloy steel to improve wear and impact resistance. The crushing chamber features a deep, large eccentricity design, making it suitable for feeding large bulk materials. The "laminated crushing" principle reduces over-crushing and ensures uniform particle size, maximizing the machine's service life and reducing costs for businesses.
